â—† Brand: Siemens

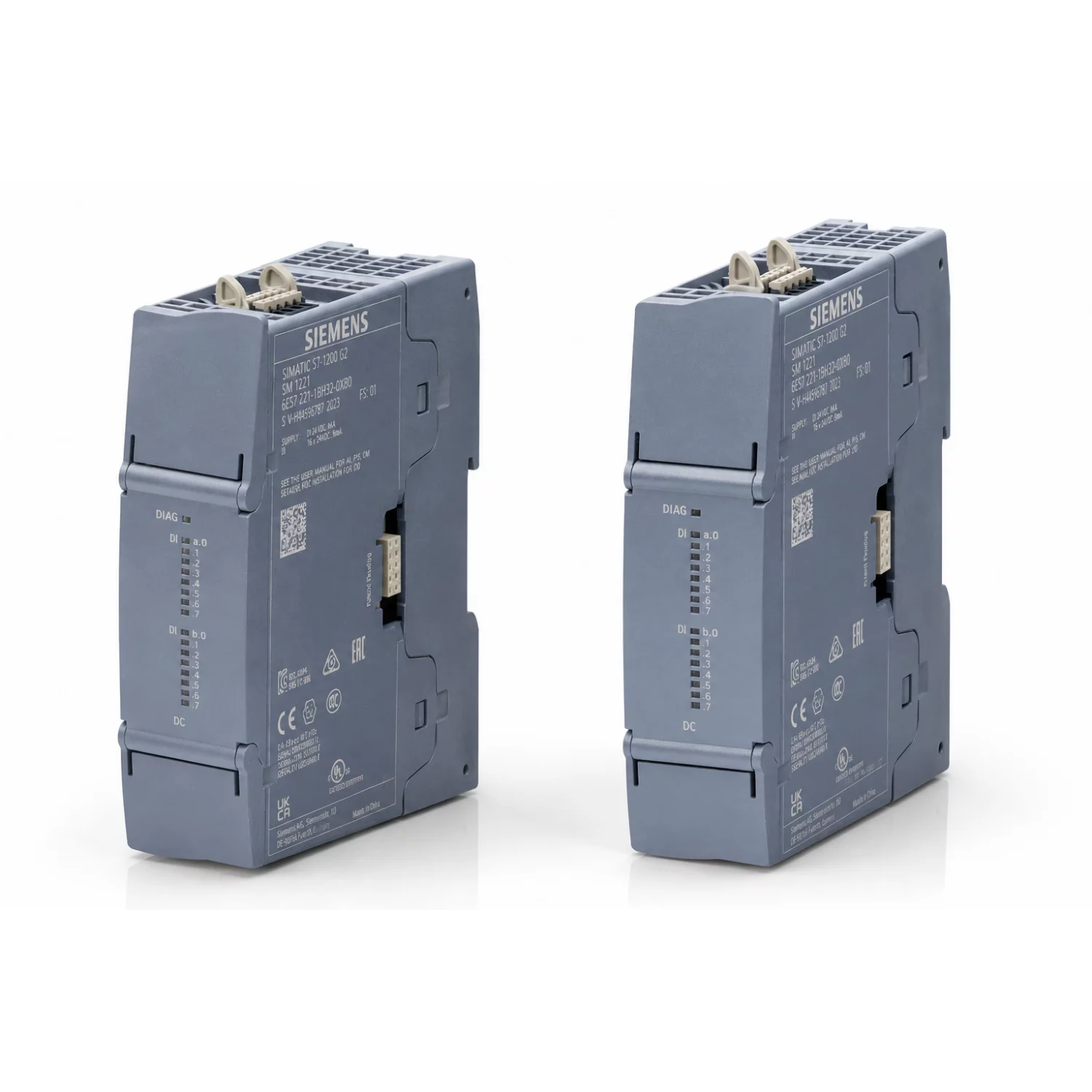

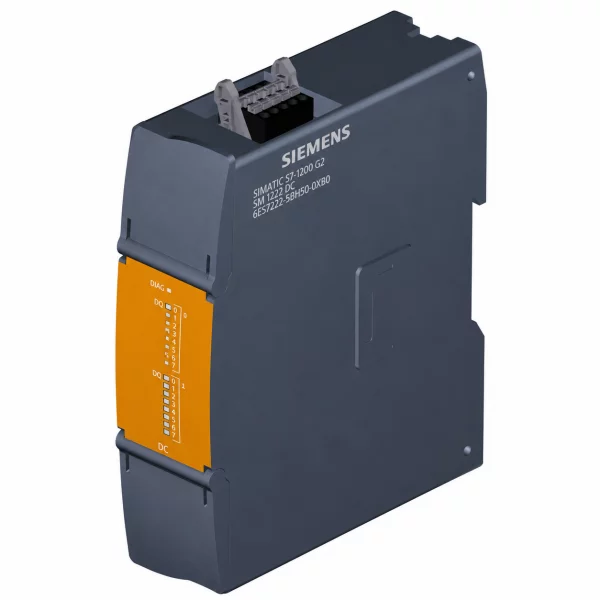

â—† Product: SIMATIC S7-1200 G2 Digital Output Module
â—† Model: SM 1222 DO 16x24VDC
â—† Part No.: 6ES7222-5BH50-0XB0
â—† Supplier: Maan Electro Controls
â—† The Siemens SIMATIC S7-1200 G2 SM 1222 Digital Output Module is designed to expand the output capacity of S7-1200 G2 PLC systems, allowing reliable control of field devices such as relays, contactors, solenoid valves, indicator lamps, alarms, and industrial actuators.
â—† This module converts PLC control commands into digital output signals and provides flexible expansion for machine automation, process control, and factory automation applications.
â—† Product Type: Digital Output Signal Module (SM)
â—† Series: SIMATIC S7-1200 G2
â—† Module Type: SM 1222 Digital Output Module
â—† Part Number: 6ES7222-5BH50-0XB0
â—† Number of Outputs: 16 Digital Outputs (DO)
â—† Output Voltage: 24 VDC
â—† Output Current: 0.5 A per Channel
â—† Output Type: Sourcing Transistor
â—† Mounting Type: DIN Rail Mounting
â—† Engineering Software: TIA Portal
â—† Compatible PLC Series: SIMATIC S7-1200 G2 PLC
â—† Communication: Integrated via PLC Backplane Bus
â—† Application: Industrial Automation & Machine Control Systems
â—† 16 Digital Output Channels
â—† 24V DC Output Voltage
â—† 0.5A Output Current per Channel
â—† Sourcing Transistor Outputs
â—† High-Speed Switching Performance
â—† Compact Industrial Design
â—† Easy PLC System Expansion
â—† DIN Rail Installation
â—† TIA Portal Integration
â—† Reliable Industrial Operation
â–¶ TYPICAL LOADS CONTROLLED
â—† Relay Coils
â—† Power Contactors
â—† Solenoid Valves
â—† Tower Lamps
â—† Industrial Indicators
â—† Buzzer & Alarm Systems
â—† Pneumatic Actuators
â—† Motor Control Circuits
â—† Machine Interlocking Devices
â—† Control Panel Outputs
â–¶ APPLICATIONS
â—† Machine Automation Systems
â—† Packaging Machines
â—† Conveyor Automation
â—† Material Handling Equipment
â—† Food & Beverage Plants
â—† Pharmaceutical Industries
â—† Water Treatment Systems
â—† OEM Machine Manufacturing
â—† Process Automation Projects
â—† Factory Automation Solutions
â—† SIMATIC S7-1200 G2 CPU 1212C
â—† SIMATIC S7-1200 G2 CPU 1214C
â—† SIMATIC S7-1200 G2 CPU 1215C
â—† SIMATIC S7-1200 G2 Fail-Safe CPUs
â—† Siemens HMI Panels
â—† WinCC SCADA Systems
â—† ET 200 Remote I/O Systems
â—† TIA Portal Engineering Platform
â—† Expands PLC Output Capacity
â—† Simplifies Machine Wiring Architecture
â—† Reliable Output Signal Transmission
â—† Faster Machine Response
â—† Flexible System Expansion
â—† Easy Installation & Commissioning
â—† Reduced Panel Modification Costs
â—† Long-Term Industrial Reliability
